- Place of Origin: shenzhen china
- Brand Name: AUDES
- Model Number: ds-12DB03
- Weight: 2.800 kg

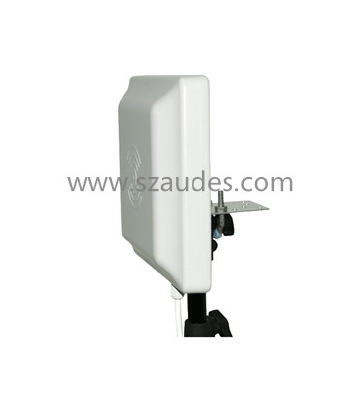

Rf UHF passive RFID antenna model Ads - 7 db01, working frequency of 902 ~ 928 MHZ or 865 ~ 867 MHZ, center frequency 915 MHZ, built-in 8 class: : dbi circular polarized antenna gain, is our third generation of the altered UHF RFID, microwave antenna to identify 900 m electronic tag no directional requirement, design beautiful generous, line and smooth edges, waterproof and dustproof design, apply households inside and outside, rf passive RFID antenna installation design also is very simple, only need to install racks can be used on fixed stud, microwave signal strength is also very stable, bandwidth Angle 45 ℃ or so, the RFID antenna can be installed in the bad weather - 40 ℃ ~ 80 ℃ temperature normal work.
- Place of Origin: shenzhen china
- Brand Name: AUDES
- Model Number: ds-12DB03
- Weight: 2.800 kg
The name of the antenna
Circular polarization RFID antenna
Frequency of the antenna
902 MHZ to 928 MHZ
Gain size (dBi)
12 dbi
Half power Angle E - Plane
58 °
Half power Angle H - Plane
60 °
A standing wave pattern than the VSWR
1.5 or less
The most powerful W
100
Lightning protection
The dc grounding
Impedance (Ω)
50
Weight (KG)
2.8
Installation dimensions (mm)
440 mm * 440 mm * 60 mm
