- Place of Origin: shenzhen china
- Brand Name: AUDES
- Model Number: ds-12DB03
- Weight: 2.800 kg

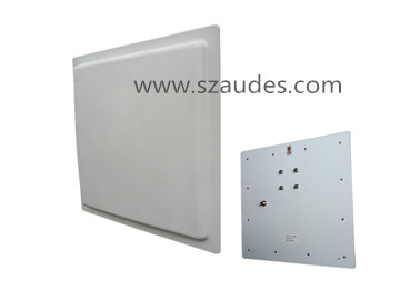

Ultra-high frequency linear polarization antenna Ads - 12 db03 ultra wide working frequency of microwave receiving 902 ~ 928 MHZ or 928 ~ 865 MHZ, center frequency 915 MHZ, built-in 12 dbi polarized antenna gain line, design beautiful generous, line and smooth edges, waterproof and dustproof design, can be used for the door inside and outside, rf passive RFID antenna installation design also is very simple, only need to install racks fixed on the vertical rod or L stud can be used, the stability is also very good, the frequency bandwidth Angle 45 ℃ or so, the RFID antenna can be installed in the bad weather - 40 ℃ ~ 80 ℃ temperature normal work. Uhf RFID antenna suitable for use in a parking lot, wharf, logistics, warehousing, depot, and other areas of the RFID radio frequency identification systems and iot enterprises in the project.
The main parameters
- Place of Origin: shenzhen china
- Brand Name: AUDES
- Model Number: ds-12DB03
- Weight: 2.800 kg
The name of the antenna
Circular polarization RFID antenna
Frequency of the antenna
902 MHZ to 928 MHZ
Gain size (dBi)
12 dbi
Half power Angle E - Plane
58 °
Half power Angle H - Plane
60 °
A standing wave pattern than the VSWR
1.5 or less
The most powerful W
100
Lightning protection
The dc grounding
Impedance (Ω)
50
Weight (KG)
2.8
Installation dimensions (mm)
440 mm * 440 mm * 60 mm
