- Place of Origin: shenzhen china
- Brand Name: AUDES
- Model Number: Ads-834G ADS-831

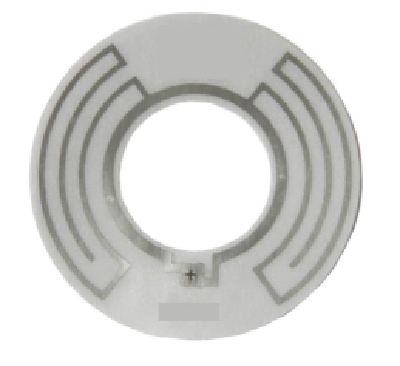

RFID disc label Ads - 834 - g USES the frequency hopping working mode, it has strong anti-interference ability, the user can read and write custom standard data, make a special application system efficiency more quickly, read distance can reach more than 8 meters. Uhf RFID CD label 512 bits memory capacity, the only global 64 bits ID, super wide operating frequency band design, not only conforms to ISO - 18000-6 - c industry regulation, but also for the development and application of flexible, can read and write multiple tags at the same time and not be restricted by workspace tag number and influence of 448 bits of storage area for user to read, write, erase and write operations. Passive RFID CD label design, can be divided into four area, EPC, user area, dar, reservations, district memory can wipe over and over again more than 100000 times, effective service life of more than ten years, more cost-effective.
RFID CD label/CD electronic label/flexible disc passive tag/uhf CD/CD are the most suitable application scope of label
Cardiac logistics and warehousing management: automatic scanning flow and warehousing management, and material balance, production process management, warehouse outbound product sales management;
Cardiac health care products, pharmaceuticals and other management: the manufacturing flow management, in-out warehouse inventory management, sales traceability management, etc.;
His books, document file management: self-help books to the library borrowing books of sales management, archives to find file archiving system management;
Derive products RFID anti-counterfeit detection: the use of RFID electronic tag the only global code or user custom area write protection function, the product is used to identify the authenticity;
Product features
Cardiac passive free maintenance;
Has read as far as distance is greater than 12 m;
His reading and writing data speed, life for more than 10 years, 100000 times over and over again, speaking, reading and writing;
Cardiac film or PET film, PVC coated paper packaging, can design, writing, printing, bar code printing
Derive much card recognition - at the same time identify more than 200 tags per second;
Passive distance 6 brfid card USES the frequency hopping working mode, it has strong anti-jamming capability, users can read and write custom standard data, make a special application system efficiency more quickly, read distance can reach more than 10 meters, passive radio frequency card USES the frequency hopping working mode, it has strong anti-jamming capability, users can read and write custom standard data, make a special application system efficiency more quickly, read distance can reach more than 10 meters. Passive radio frequency card 2024 bits of memory capacity, the only global 64 bits ID, super wide operating frequency band design, both comply with related industries, but also for the development and application of flexible, can read and write multiple tags at the same time (up to more than 50 / SEC), and not be restricted by workspace tag number and influence of 928 bits to encrypt storage area for users to read, write, erase and write operation, opening the specified user dedicated permanent special zone. Passive radio frequency card design, no batteries, memory can wipe over and over again more than 100000 times, the effective service life of more than ten years, more cost-effective
- Place of Origin: shenzhen china
- Brand Name: AUDES
- Model Number: Ads-834G ADS-831
Working frequency: 860 ~ 960 MHZ
Accord with a standard, ISO 18000-6 - c EPC G2
Read distance: 0 ~ 12 m in reading and writing of antenna gain size or the use of the environment
The available data area: 512 bits
Working pattern: R/W (read/write)
Data: save time > 10 years
Repeatable wipe number: 100000
The label material: aluminum foil
Anti-collision mechanism: suitable for tag read more
Working temperature: - 35 ℃ ~ 65 ℃
Feet inches: diameter of 35 mm x 0.2 m

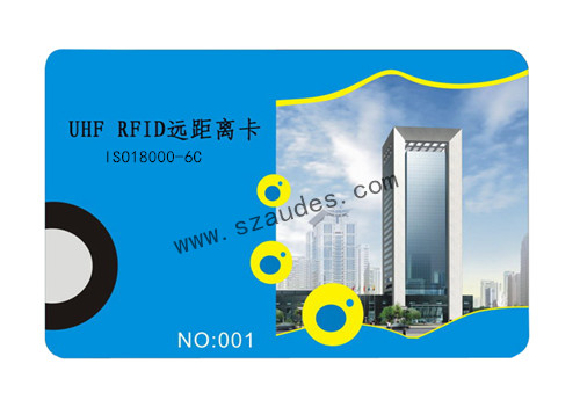

Working frequency gb 860-960 MHZ or customize other spectrum frequency hopping or fixed frequency
Support agreement ISO18000-6 b
Identify distance 10 m
Card block memory EEPROM a total of 2024 Bits, 96 Bits is used as the system parameters in the factory as the ID number and distribution of circulation management data has been lock cannot be changed
Programmable memory capacity of 1024 Bits application development zone for the user, can according to the need for byte formatting functions and locking to read and write operations
Base material PVC or PET packaging label can be printed design, text, printing, time code, code, bar code printing packaging and individuality, never fade
Tag reading and writing reads a single block of memory EEPROM data on average every 32 bits read minimum takes about 1.4 ms; When writing an average of 32 bits minimum 30 ms
Label anti-jamming performance The anti-collision communication protocol; Effective binary tree conflict prevention mechanism, not affected by workspace tag number of restrictions and can effectively read up to more than 50 tags per second
Working temperature: PVC material - 40 ℃ ~ 65 ℃ storage temperature: 55 ℃ ~ 100 ℃
PET materials working temperature: - 40 ℃ ~ 90 ℃ storage temperature: 55 ℃ ~ 100 ℃
Product size 86 (H) x 55 (T) (W) x 0.8 mm size can be customized
